Arisaka Inline Scout Mount Picatinny

Rated 0 out of 5
(be the first to review)
Light Mounts

Light Mount Only

Surefire Scout Weapon Lights Available HERE

$45.00

In Stock

Compare
SKU: ARI-ISM-P Categories: , , Brand:

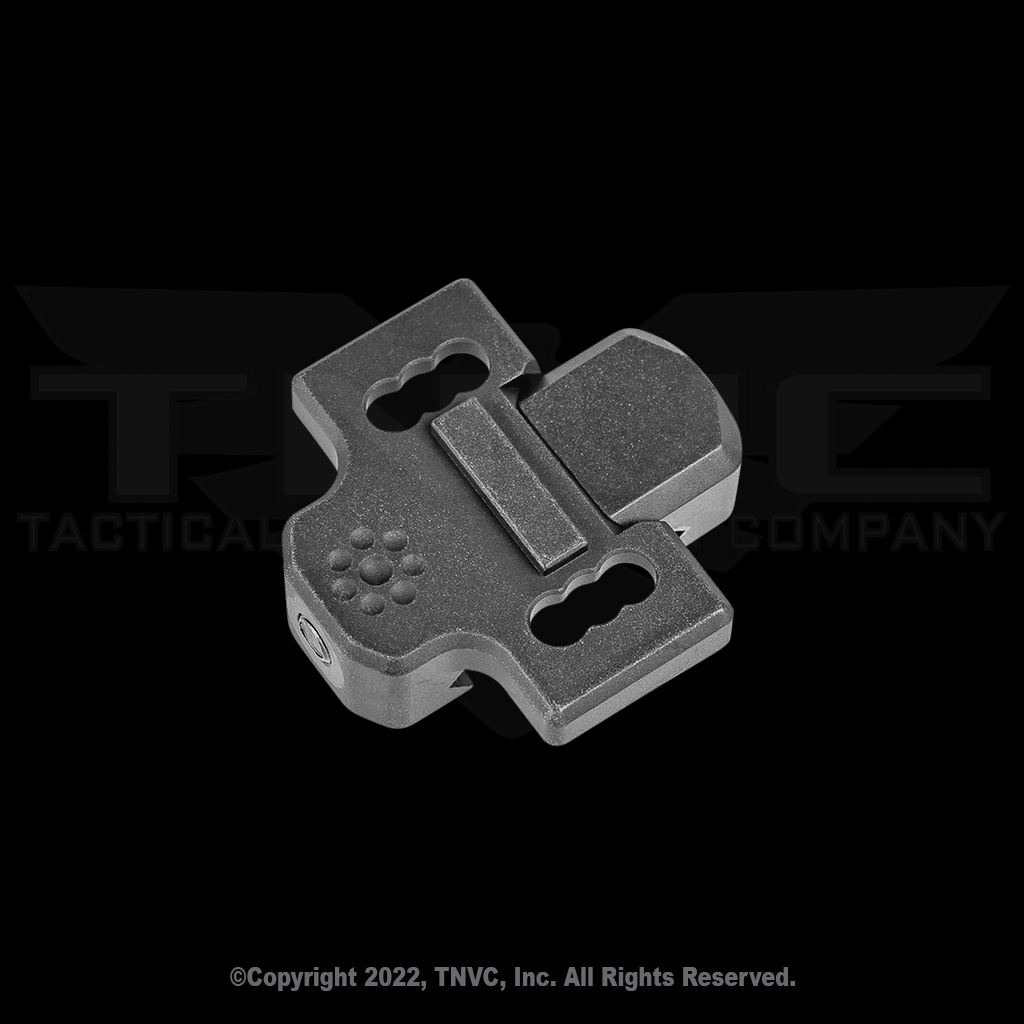

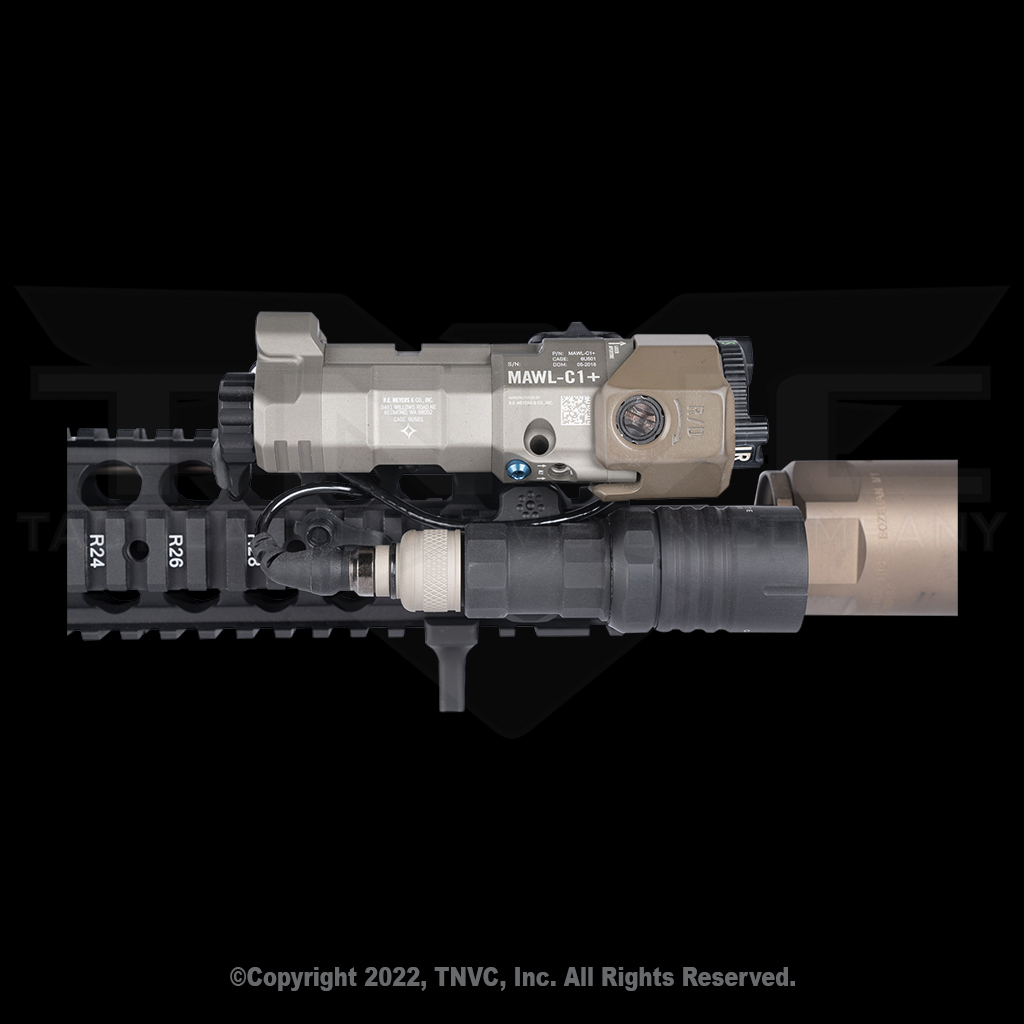

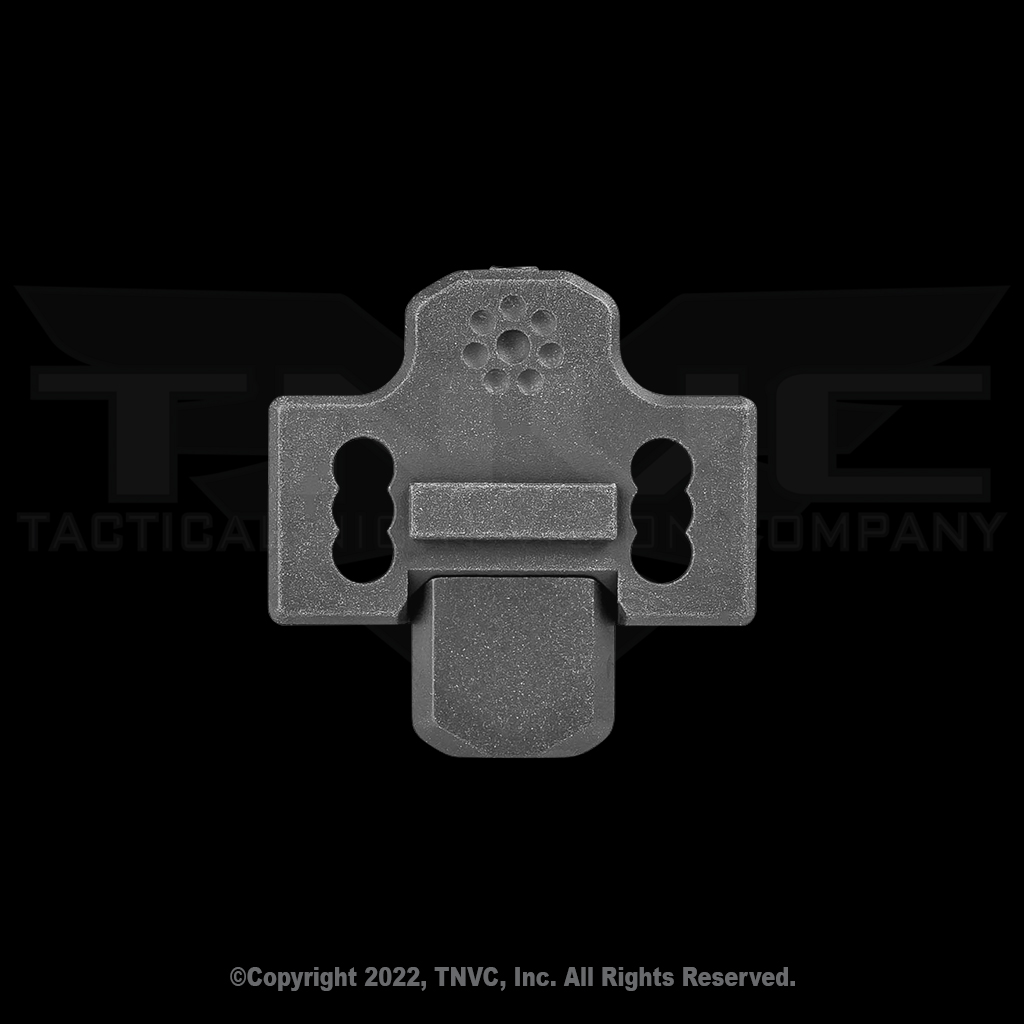

    The Patent Pending Arisaka Inline Scout Mount (ISM) is designed for use with Surefire Scout Lights, the Modlite PLH and OKW weapon lights, the Arisaka 300, 600 and 18650 Series, and the Streamlight Protac Rail Mount lights. It replaces the stock Picatinny rail adapter with a low profile mount that tucks the light underneath either side of the B.E. Meyers MAWL laser/illuminator series. Three positions on the mount allow for different diameter light heads to clear the MAWL without interference.

    Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), CD REIN, and Arisaka 300, 600 and 18650 Series.

    Length: 1.265″

    Thickness: 0.2″

    Weight: 0.6 oz

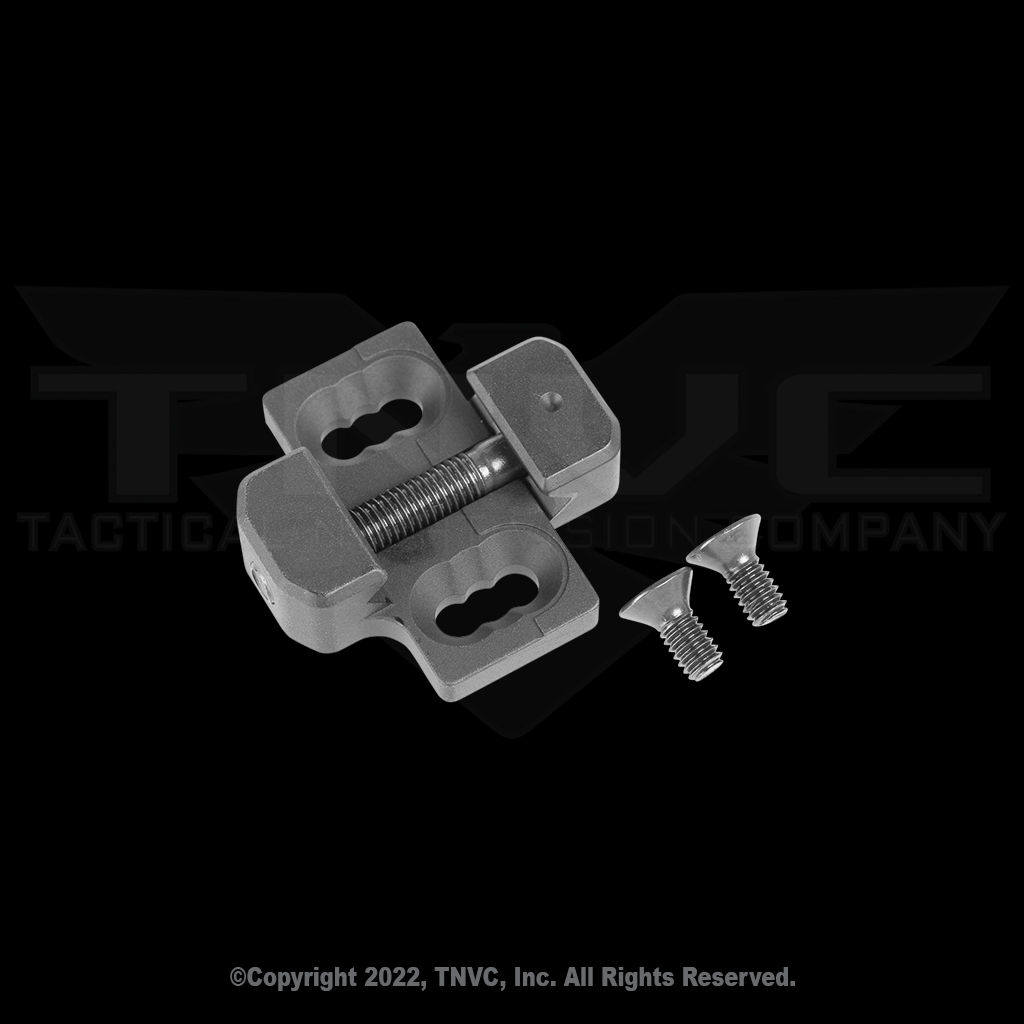

    The mount is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP27/T27 and IP20/T20 Torx driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 20 inch lbs for light body and 30 inch lbs for clamping screw with low/medium strength threadlocker (Loctite 222 or 243).

    Made in the USA.

    Reviews

    There are no reviews yet.

    Leave a customer review

    Your email address will not be published. Required fields are marked *


    SPECS

    Manufacturer Arisaka
