Baja Designs Wiring Harness

There are two wiring harness option available – the OnX6/S8 and the Universal with switch. Please be sure to select the correct version in the drop down menu.

OnX6 / S8

This harness is designed specifically for the Baja Designs OnX6+ (10-20in), S8 light bar (10-30in) and XL Sport or XL Pro auxilary light. The harness is rated for x1 10 inch-20 inch OnX6 light bar, or x1 10 inch-30 inch S8 light bar. We spend a substantial amount of time developing these harnesses to ensure they are safe, and reliable for your adventures. The installation of this harness is simple, the harness has positive and negative terminals to be ran to your battery. The harness has a single 3-pin plug for the OnX6 Plus, S8, XL Sport/Pro that easily plugs in using a weather pack connector. The rest is a matter of routing throughout your vehicle.

Features:

• Single 3-pin weather pack connector
• Works for OnX6+ light bar (10-20in)
• Works for S8 light bar (10-30in)
• Power a single XL Sport or XL Pro auxilary light
• Note: This harness will not work with OnX6+ 30in. and above and S8 40in. and above

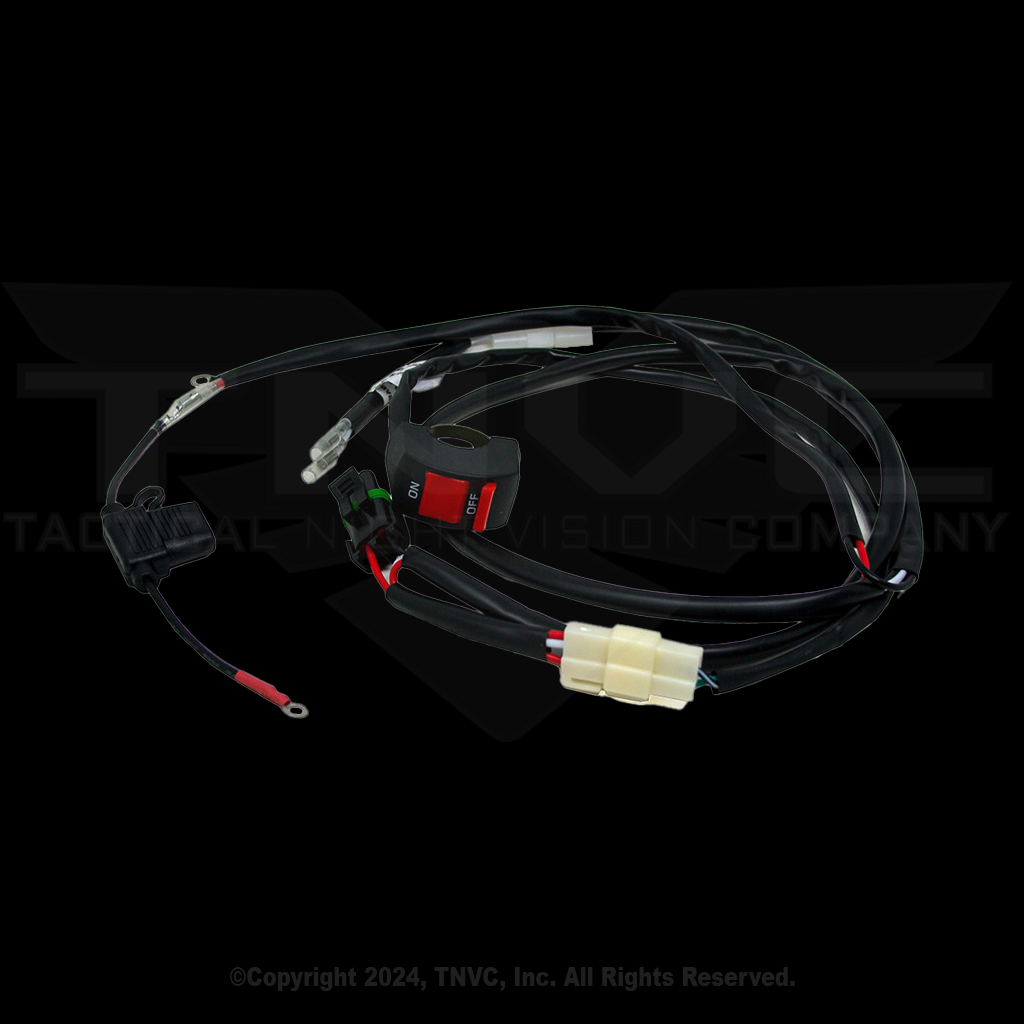

UNIVERSAL WITH SWITCH

This wiring harness has been designed for a universal application. The requirements for this harness are that it needs a battery to run off of and the vehicle MUST have enough DC power in order to run the light you are trying to purchase. You can check your vehicle’s output by both referencing our stator reference chart as well as calling in to one of our trained techs. This harness comes equipped with an on/off handlebar switch, and optional taillight lead.

NOTE: The switch is water resistant only.
