L3Harris BNVD (AN/PVS-31A) 2376+ FOM

5.0 (2 reviews)
Night Vision Binoculars/Goggles

USSOCOM Binocular Night Vision Device High Performance Unfilmed White Phosphor



***TNVC 10 YEAR WARRANTY***

$13,999.00

Out of Stock (Can be Backordered)

Mohawk MK3 Add-on

  • Mohawk MK3 *

Product total

Options total

Grand total

Compare

Description

***NOW AVAILABLE FOR COMMERCIAL SALES***

***TNVC 10 YEAR WARRANTY***



FAQ:

  • These units will come with tube data sheets and a 10 Year Extended Warranty through TNVC in addition to the L3Harris Factory Warranty
  • These units will come with the L3Harris 4x AA Cold Weather Battery Pack (CWBP) and 25” 90 degree cable connector, as well as the full factory accessory kit – THIS DOES NOT INCLUDE EXTRA DIOPTER INSERTS. The standard diopter is -0.50, this is optimized for the 95th percentile of users, alternate diopters will be special order items.
  • They will not come with the standard TNV accessories (NVG pouch/cleaning kit)
  • They will all be 2376+ FOM, Unfilmed White Phosphor tubes – HAND SELECT WILL NOT BE AVAILABLE
  • This is not a contract overrun or limited availability product, they will be a regularly stocked product, though we expect demand to exceed inventory quickly—they will be available on backorder



THE L3HARRIS BNVD (AN/PVS-31A) FEATURES NON-ADJUSTABLE DIOPTERS. THE STANDARD INCLUDED DIOPTER IS -0.5, HOWEVER, DIOPTERS TO MATCH EYE PRESCRIPTION (INCLUDING SPARE PARTS) ARE AVAILABLE FOR PURCHASE HERE . SEE BELOW FOR MORE INFORMATION.
The standard diopter lens of -0.5 results in a system diopter of -0.5.  This means the eyepiece is focused to a distance of 2 meters  (1 ÷ 0.5).  This is typically a comfortable point of focus for the eye when either having good uncorrected or corrected vision.  So if an individual is using the BNVD while wearing their corrective eyewear they should use the -0.5 diopter.  However, if that individual is using the BNVD without their prescriptive eyewear then they would take their optical prescription and subtract 0.5 from it to determine the proper screw on diopter.



  • DEALER PRICING AVAILABLE ONLY TO PROFESSIONAL LEVEL DEALERS – DIRECT ALL DEALER INQUIRIES TO OUR DEALER SALES PROGRAM.

One of the most sought after and frequently requested night vision products now on the commercial market—the L3Harris Binocular Night Vision Device (BNVD)!

Adopted by USSOCOM as the AN/PVS-31A, the L3Harris BNVD has been in use by U.S. Special Operations Forces for several years as well as allied forces, however they have not been widely available on the commercial market.

The L3Harris BNVD is one of the lightest binocular night vision systems on the market, with unparalleled optical performance with lightweight optical lens assemblies optimized to maximize the performance of the Unfilmed 2376+ FOM (figure of merit) White Phosphor image intensifier tubes, and features both an onboard AA battery and an external power connector to be used with an external power supply.

These systems will be available and ship direct from TNVC with the complete 4x AA Cold Weather Battery Pack and 25” BNVS power cable with full factory warranty and customer support. Each unit will also come with factory image intensifier Tube Data Records with a minimum figure of merit (FOM) of 2376.

These units are NOT contract overruns—these are brand new manufactured units, and they will be available as regular stocking units from TNVC, though demand is expected to be extremely high.

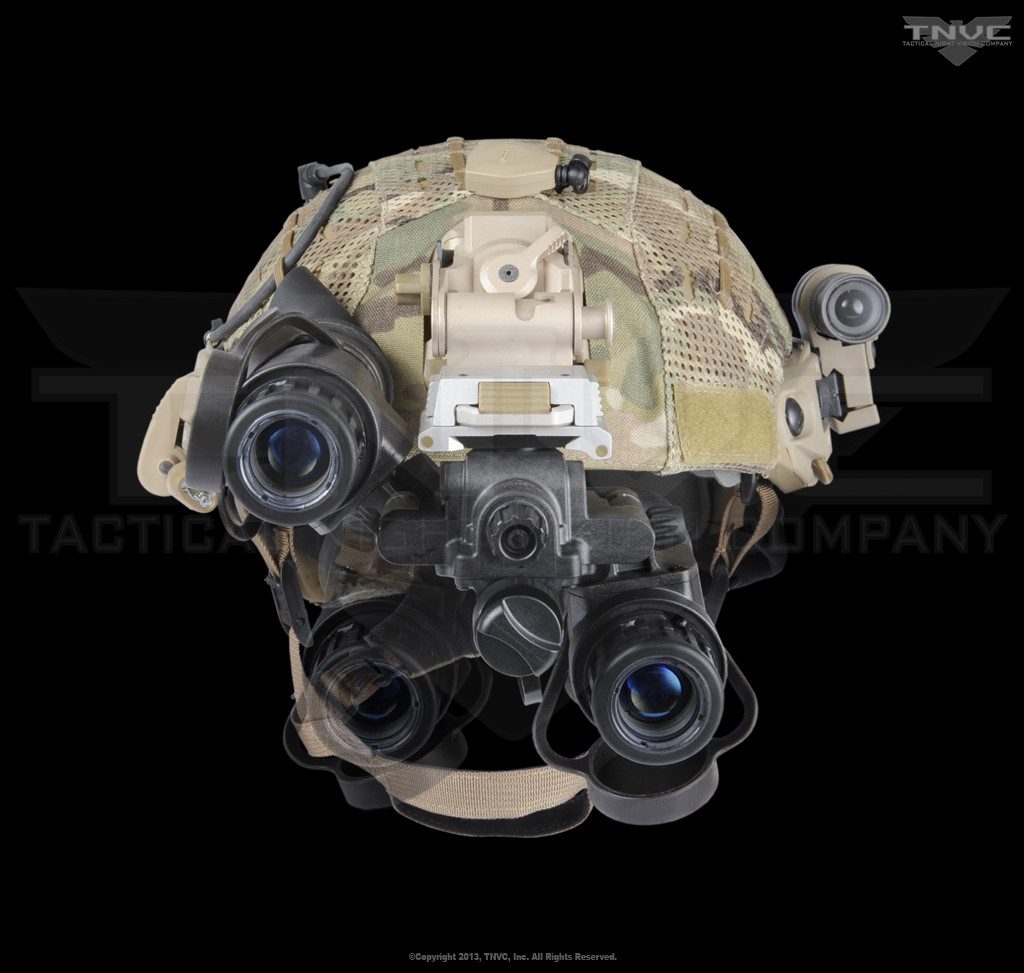

The AN/PVS-31A Binocular Night Vision Device (BNVD) is compact, lightweight, dual tube Gen3 goggle to replace the legacy AN/PVS-15 in the USSOCOM inventory.  In a sea of dual tube night vision goggles, the AN/PVS-31A is the smallest and lightest unit by far.  Weighing in at just under one pound, this system is almost as light as a monocular, yet packs in the same feature set (and then some) of much heavier devices.  Working directly with U.S. Special Operations Forces’ input, the AN/PVS-31A was designed to increase system resolution, significantly reduce head borne weight, improve system of center of gravity, provide additional operational utility, and improve overall operator situational awareness.

The AN/PVS-31A BNVD utilizes L3Harris’s latest Gen3 Unfilmed image intensifier tubes, providing unmatched clarity and resolution.  These tubes are variable gain-capable, allowing operators to adjust the brightness of their image as situations on the ground dictate.  Gain adjustment is quick and easy; done by simply rotating the power button.  This centrally-located control activates and deactivates the goggle when pressed and held in for two seconds, making all controls easy to locate and operate without being able to see them and while wearing gloves.  There is no integral infrared illuminator in the AN/PVS-31A BNVD.  This feature was not desired by most operators due to its limited distance functionality and added weight/size.

The AN/PVS-31A can run off a single on-board AA battery or a remote battery pack mounted behind the helmet for extended use.  The remote pack allows the goggle to weigh in even less and acts as a counterweight to the entire system.  It also features built-in dual infrared strobe lights for ground personnel identification.  The strobes can be easily activated by a small protected switch under the battery housing.  One thing to note is that the cable connecting the goggle to the remote battery pack will slightly interfere with the right tube’s ability to be pivoted up (see below).

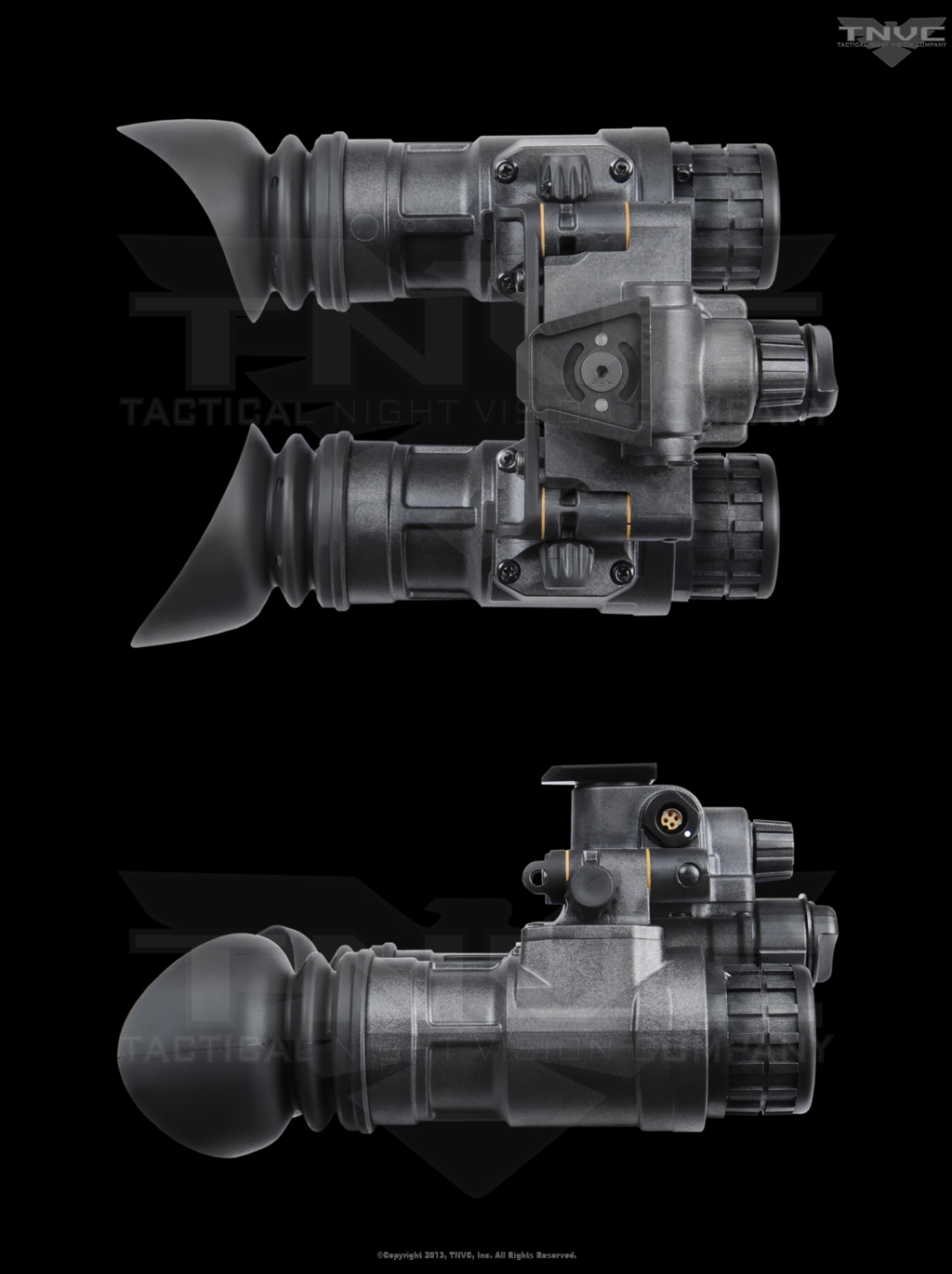

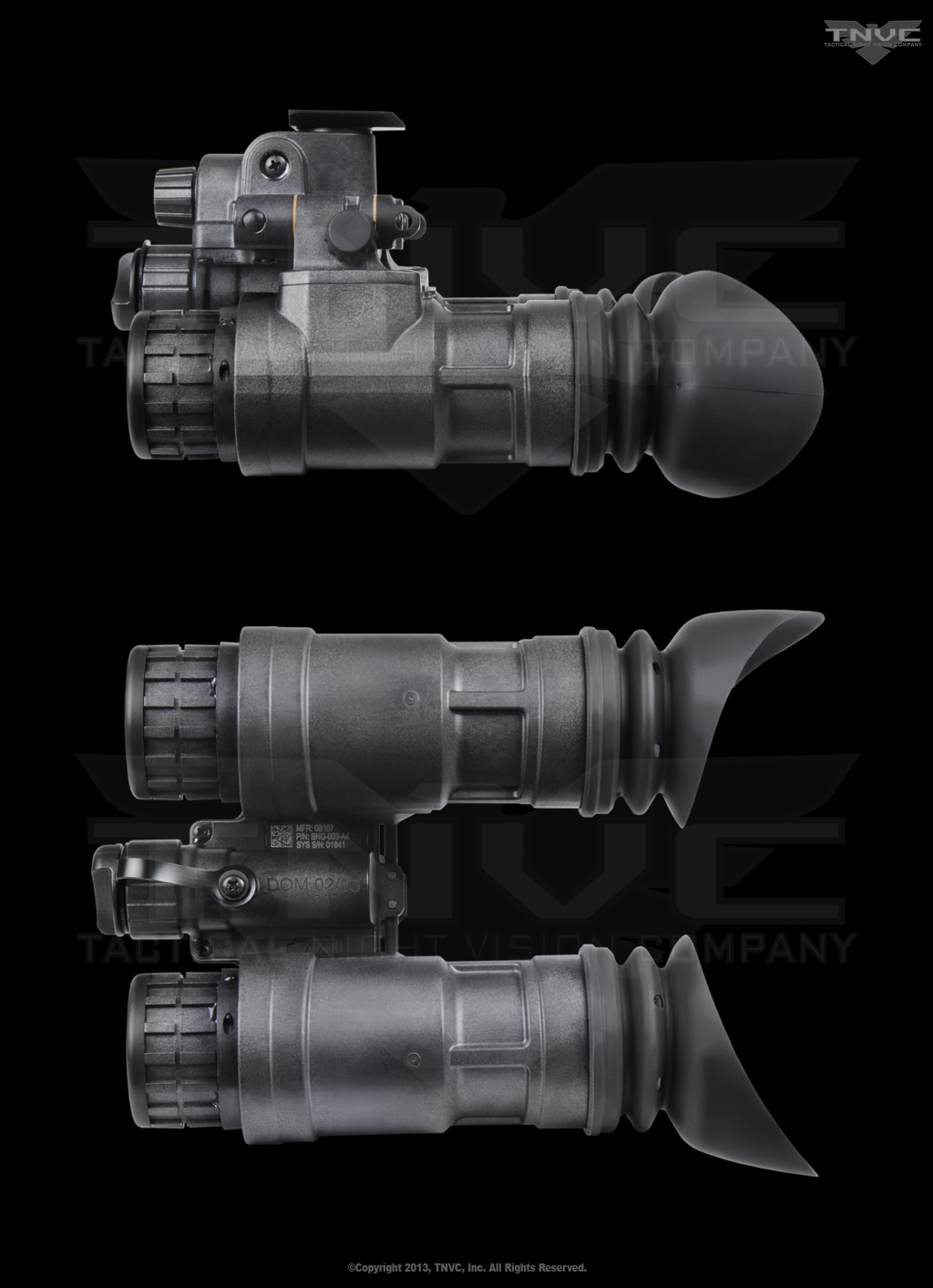

The AN/PVS-31A BNVD has independently pivoting tube housings that allow the operator to run the goggle in a binocular or monocular configuration.  Using two tubes at once allows the eyes to create depth perception and increases the ease in maneuvering terrain and obstacles as well as operating devices such as control panels and door knobs.  However, monocular configurations allow for ease in transitioning between various lighting conditions that often occur on the battlefield and cause operators to switch between night vision weapon-mounted white lights.  The AN/PVS-31A can be configured to adapt to various situations, giving the user the best of both worlds.  Another benefit to the pivoting tube housings is the ability to mount the “flatten” the goggle against the front helmet surface when stowed.  Goggles are often worn throughout the duration of a mission, even in daylight hours, because operators may find themselves in a dark environment.  NVG’s are often left in the stowed position until needed so they can be instantly accessed.  But, this causes a snag hazard since the goggles can easily bang into objects while flipped up.  The ability to pivot the tube housings against the helmet surface creates an overall lower profile, increasing operator safety and equipment life.

Export of Night Vision Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR). It is a major crime to ship or carry US manufactured night vision devices outside the borders of the United States, punishable by fines and prison sentences. Ignorance of these regulations will not hold up in court. By purchasing night vision equipment from TNVC, you attest that you will not attempt to export or carry this night vision equipment outside the borders of the United States. Also, it illegal to allow a non-US Citizen to look through US Gen3 Night Vision Devices, even on US soil. Again, this is a crime punishable by fines and prison sentences.

2 reviews for L3Harris BNVD (AN/PVS-31A) 2376+ FOM

  1. Connor Dalton

    First day out of the box these things are amazing. They are reliable just amazing looking and feeling. Good out in the cold 0 degrees F works perfectly would recommend.

  2. Ben

    Tough. Water proof. Effective. Lightweight. I’ve been beat up in the surf zone, crashed through the J, and crawled through the dirt, all with them on my face. I’ve inherently smashed them on rocks and dropped them but they keep on kicking. 31s are lightweight, have a good field of view, and good clarity. I have had some fogging issues in high humidity environments with excessive sweat/ body heat but I figure that’s pretty reasonable given the extreme range of climates I’ve exposed them to in a matter of days at a time. All in all pvs 31s get 5 stars in my book. – random misfit

Leave a customer review

Your email address will not be published. Required fields are marked *


SPECS

Manufacturer L3Harris Technologies
Dimensions 4.7 in. L x 4.2 in. W x 3.4 in. H
Weight < 450 g (0.99 lb.) with AA Lithium battery installed (no accessories)
Finish Matte Black, Corrosion Resistant
Battery Type One (1) AA Battery (On-Board), or Four (4) AA Batteries (Remote)
Battery Life ≥ 8 hrs. on (1) AA Lithium battery (avg. 16 hrs. at 25 °C (77 °F)
Waterproof 66 ft. immersion for 2 hrs
Warranty TNVC 10 Year Warranty
OPTICAL ------------------------------------------------------------
Generation Gen3 U.S. L3Harris
Tube 18mm MX-11769 Variable Gain
Minimum Figure of Merit (SNR x lp/mm) 2376
Film Unfilmed
Gate Auto
Gain Adjustable/ Variable
Magnification 1X
FOV 40° ± 2° deg. (circular)
Objective Focus 18 in. (45 cm ±3 cm) to infinity
Eyepiece Diopter -0.5 ±0.1 (factory setting) adjustable from +2.0 to -2.0 with optional diopter lenses
INCLUDES AN/PVS-31A BNVD Goggle, Padded MOLLE Carry Pouch, Rubber Eye Cups, Sacrificial Windows, Wilcox Amber Filters, Remote Battery Pack, Remote Power Cable, Anti Fog Wipes, Lens Covers, Operator's Manual
