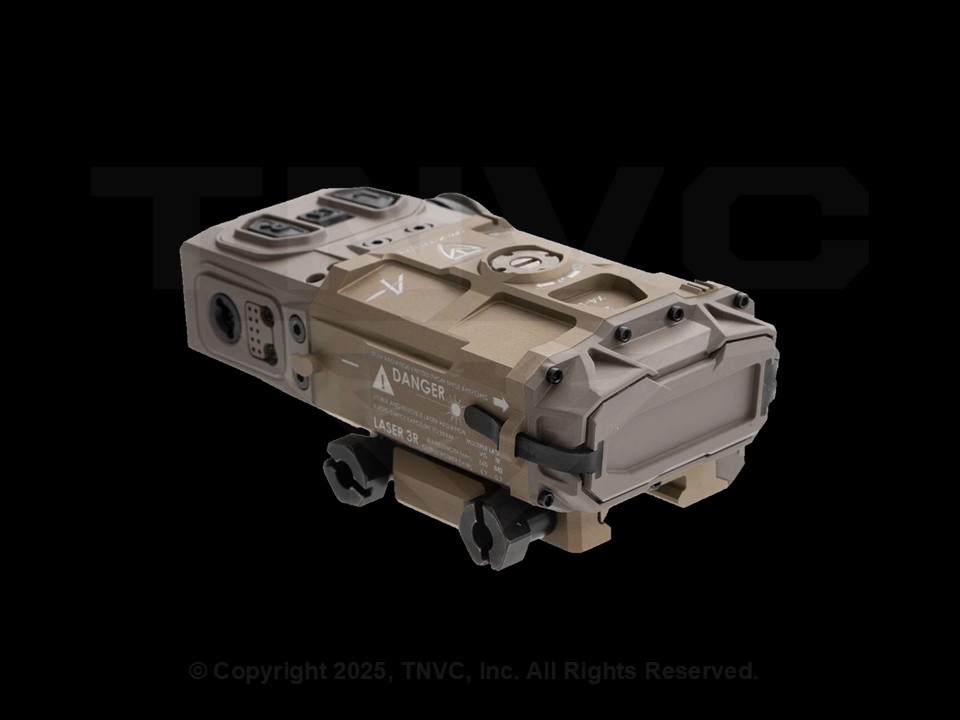

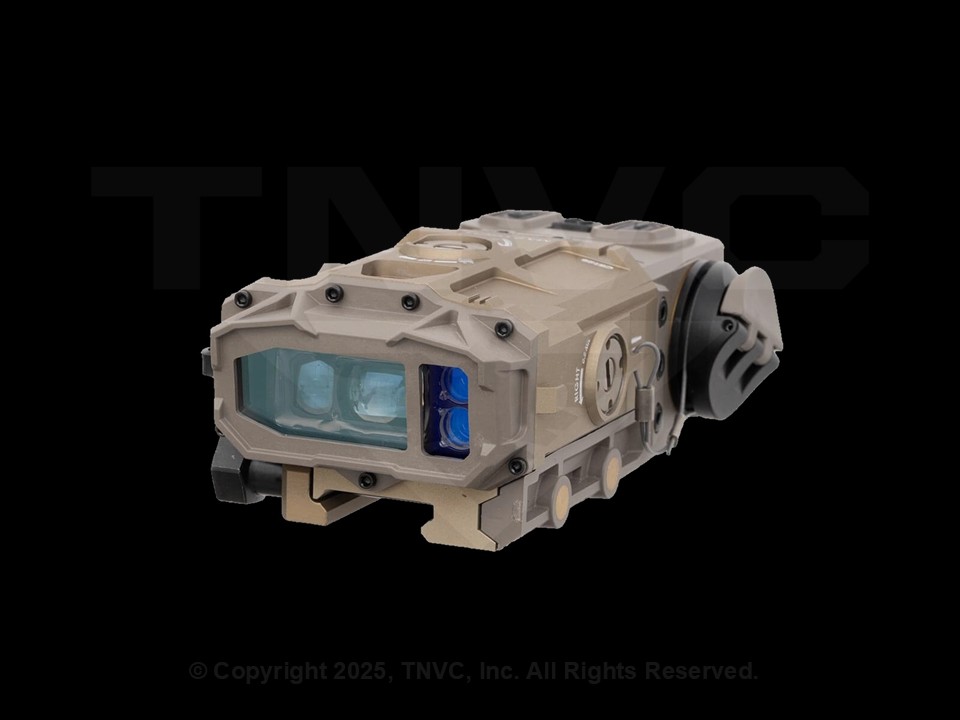

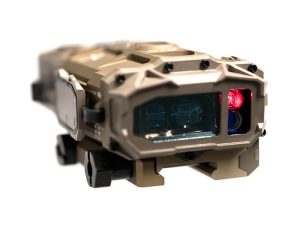

Maztech Industries X4-LRF (Laser Range Finder) – Commercial

The Maztech X4-LRF family of laser rangefinders utilize co-aligned visible and infrared aiming lasers as well as an integrated Applied Ballistics® solver with on-board environmental and motion sensors, giving you a complete ranging and ballistics solution in one compact, rugged package.

The X4-LRF-15K™ uses a 1534 nm, military-grade laser that’s not detectable by night-vision devices, and by using a low-noise, high-gain Avalanche Photodiode (APD) photoreceiver – which receives automatic bias temperature compensation from Maztech’s factory – the X4-LRF-15K offers best-in-class sensitivity to promote long-range performance while minimizing laser pulse energy and optimizing battery life. All of this translates into the ability to range a man-sized target out to three kilometers (1.86 miles) and larger targets out to 15 kilometers (9.32 miles) while allowing for real-time target adjustments thanks to its ballistic solver.

The X4-LRF-2K™ is available for consumers who want a compact, rugged and reliable rangefinder at a lower price point. Designed for closer engagements within two kilometers (1.24 miles), the X4-LRF-2K provides reliable range to target information, along with all the other features and capabilities of the X4-LRF-15K, including an onboard visible pointing laser, infrared aiming laser, and a ballistics solver with an integrated environmental sensor suite.

Both models are built around an onboard ballistic solver that uses Applied Ballistics software to create firing solutions that also account for humidity, pressure, temperature, heading, pitch and roll. When optionally paired with the Maztech Companion app, the X4-LRF can be configured from a smartphone, which also allows access to the Applied Ballistics online database. As many as 30 different ballistic profiles can be saved by the X4-LRF. A large format OLED display gives the shooter clear, easy-to-read information. A 3-button keypad is built into the unit for manual inputs. A 12-in, X4 Low-Profile Remote (MZT007) is included.

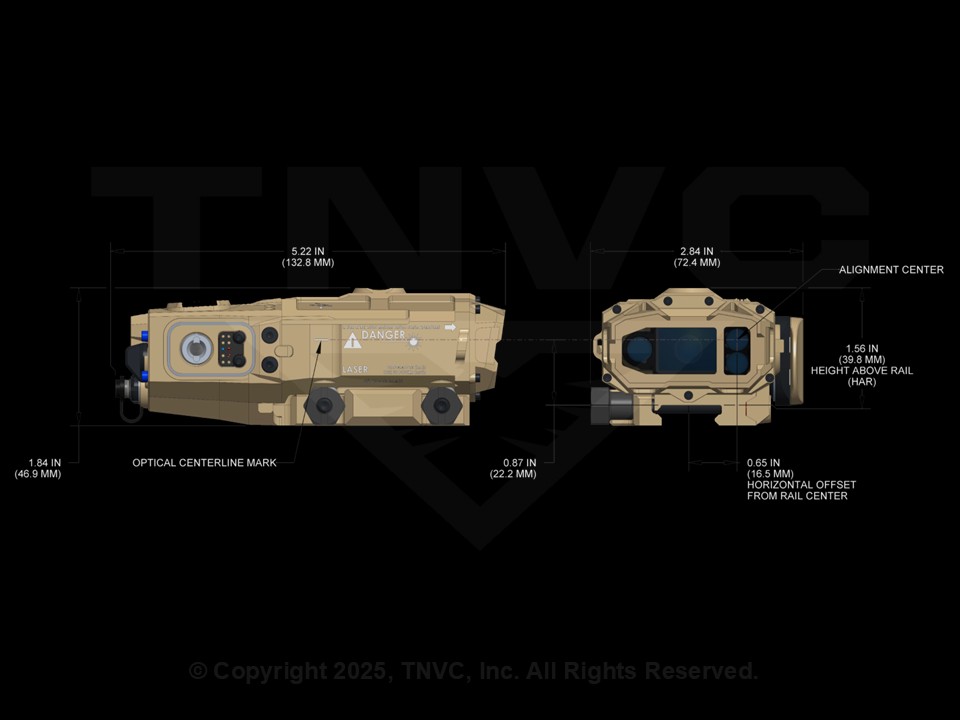

The X4-LRF can be used in either a single-measurement mode or can continuously range targets with a click of a button.  Weighing a mere 12.9 oz (including battery), the X4-LRF is light enough to be handheld and used as a standalone unit, but it is designed to mount on a standard Picatinny rail and be utilized in conjunction with a sighting scope. A built-in hotshoe port allows for attachment of the Maztech X4 Illuminator™ (available in the near future). The X4-LRF will operate under the harshest conditions between -40˚ F and 140˚ F (subject to appropriate temperature-rated batteries).

Designed to easily pair with the Maztech X4-FCS™ (Fire Control System; sold separetely), for the ultimate targeting and fire-control solution.

Made in the USA.



MULTIPLE CONFIGURATION OPTIONS

Seamless compatibility with the Maztech X4-FCS via the X4 FCS-to-LRF Cable (MZT001 and MZT006 sold separately)

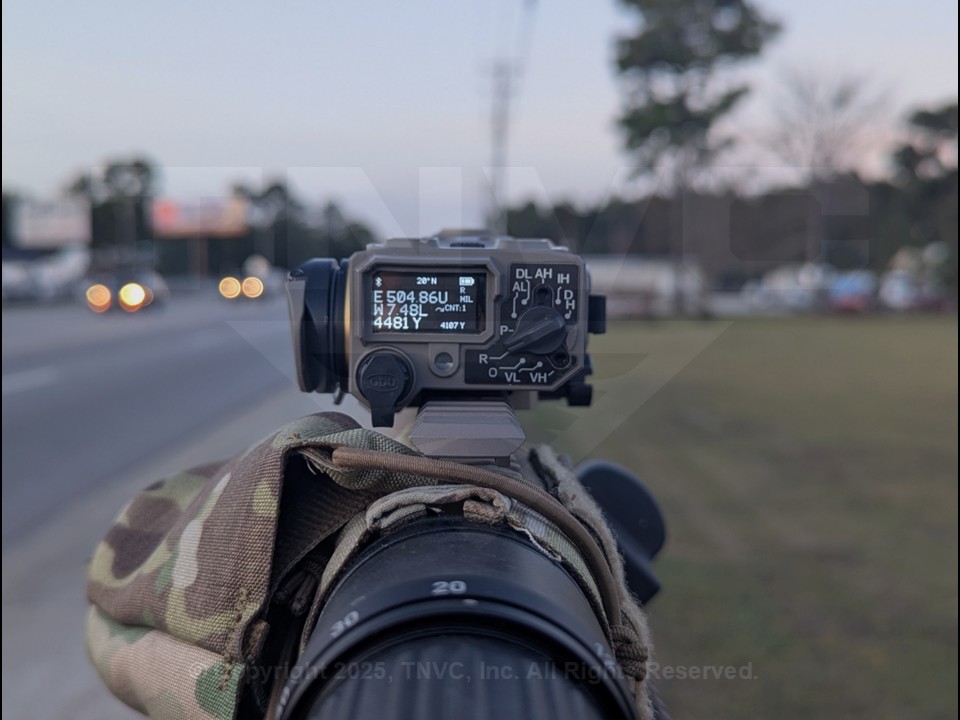

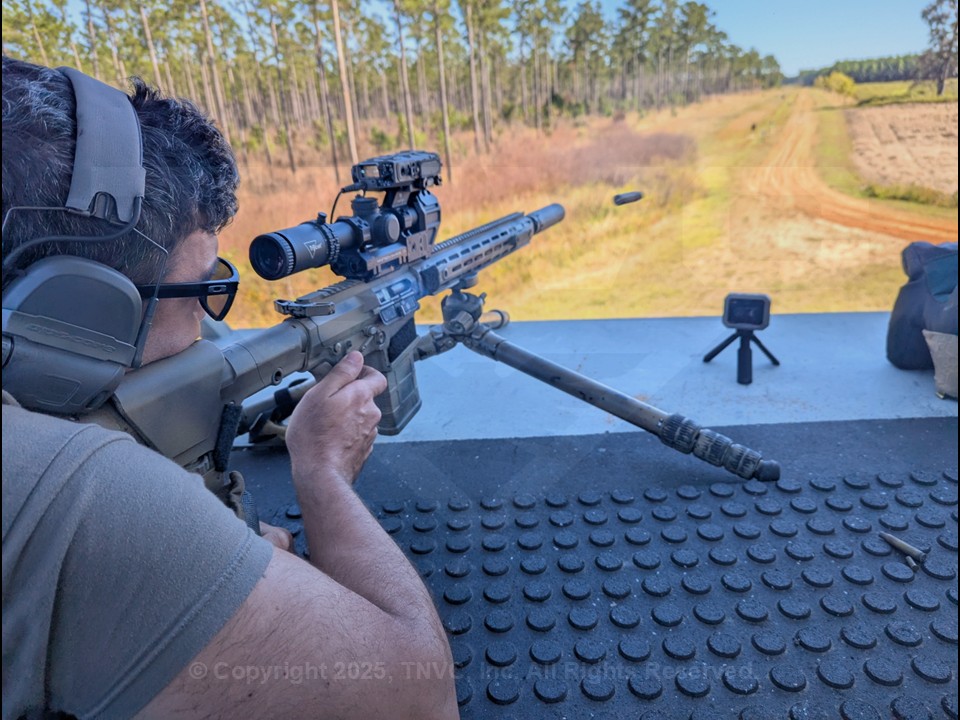

Use Picatinny rail interface to mount on hand guard or above your preferred scope using the X4 Diving Board Mount (MZT010 sold separately)

Built-in iron sights also allow for use as a standalone LRF

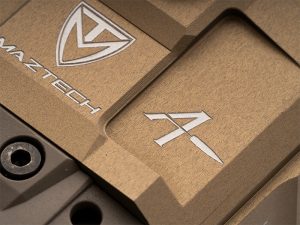

DURABLE CONSTRUCTION

Made from 7075-T6 billet aluminum with Type III hard anodized finish and durable polymers

Built to function in extreme temperatures (-40˚ F – 140˚ F, with appropriate temperature-rated batteries)

Survives immersion in three (3) feet of water for 30 minutes





ONBOARD BALLISTICS SOLVER

Applied Ballistics software compensates for humidity, pressure, temperature, heading, pitch and roll

App connectivity (via Bluetooth®) utilizes Applied Ballistics online database; setup also possible without use of Maztech Companion App

Wireless connection methods can be turned off if desired

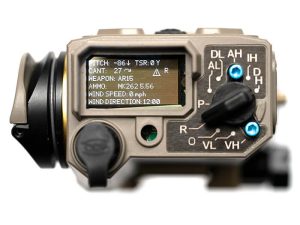

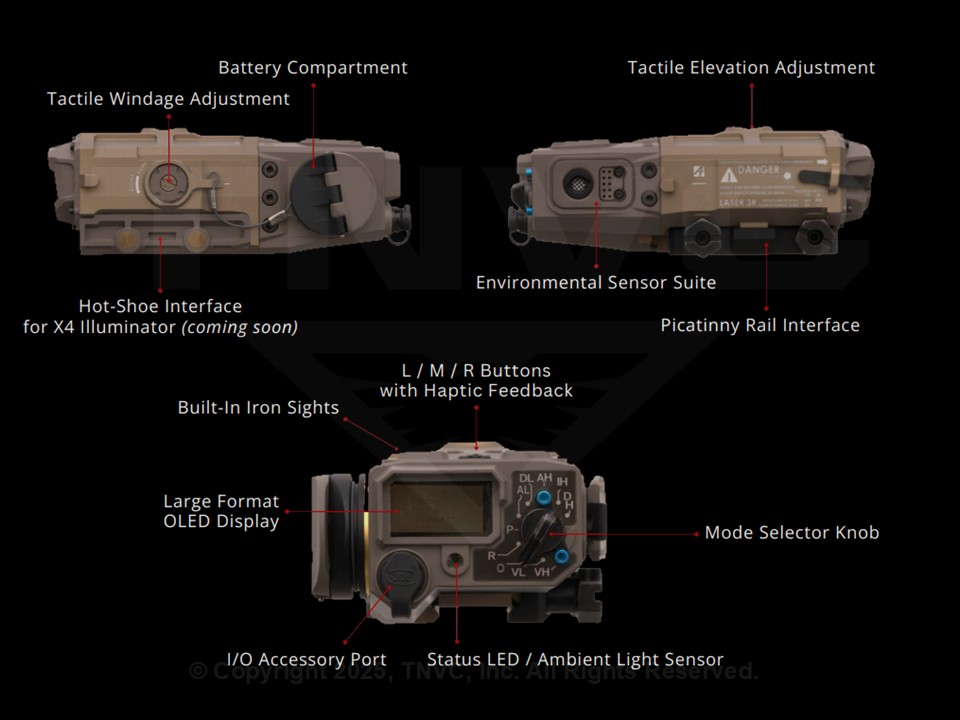

USER-FRIENDLY INTERFACES

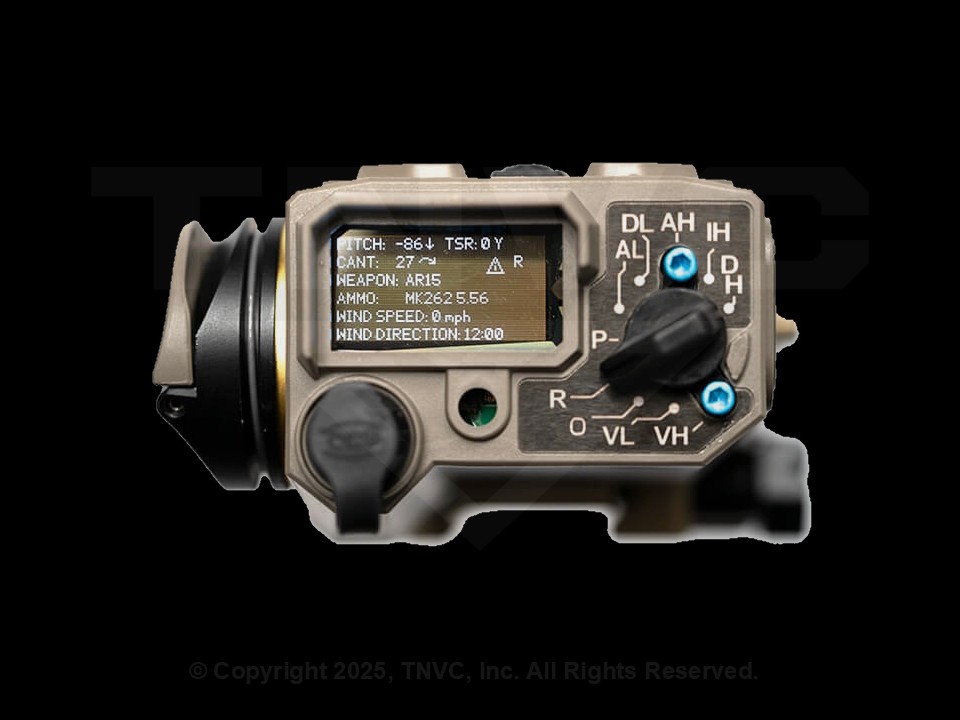

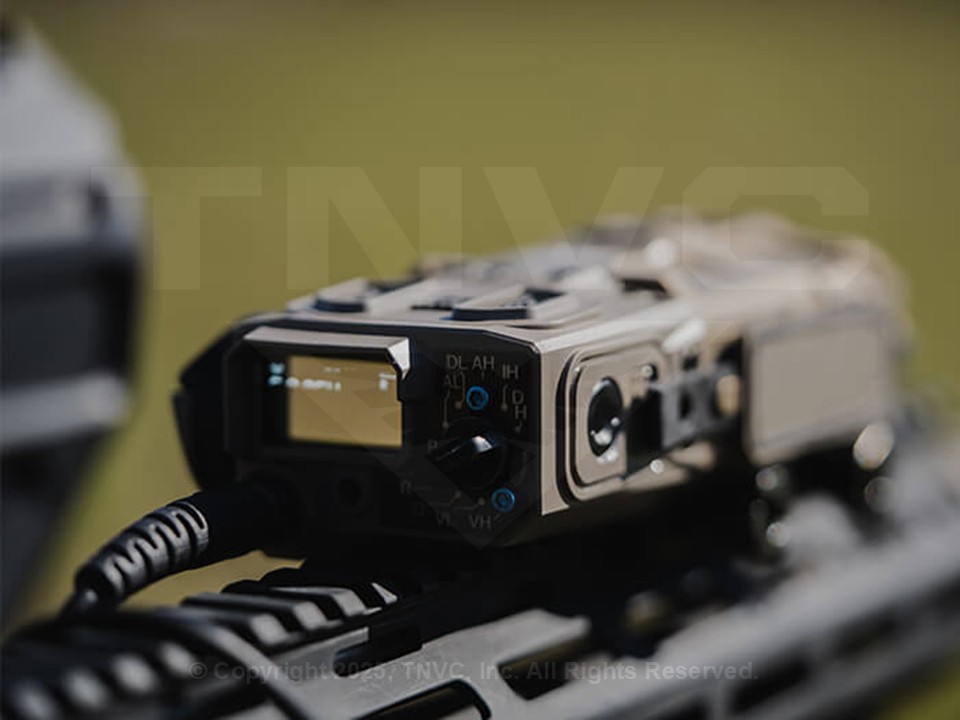

Daylight readable large format OLED display; also readable while wearing polarized glasses

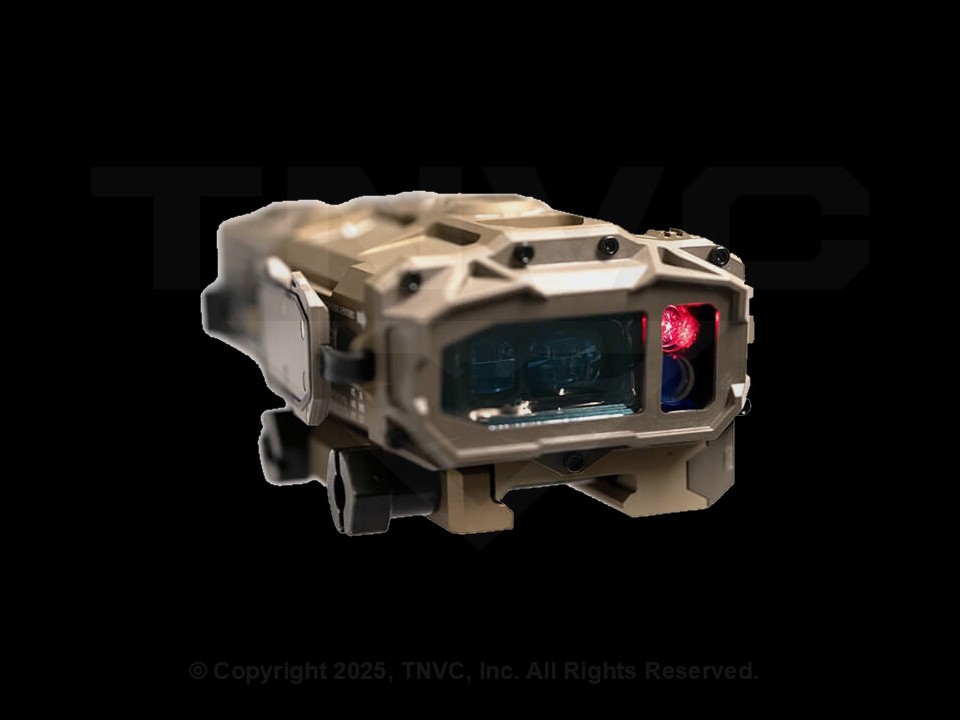

Integral IR and visible (red) aiming lasers – both co-aligned with the ranging laser

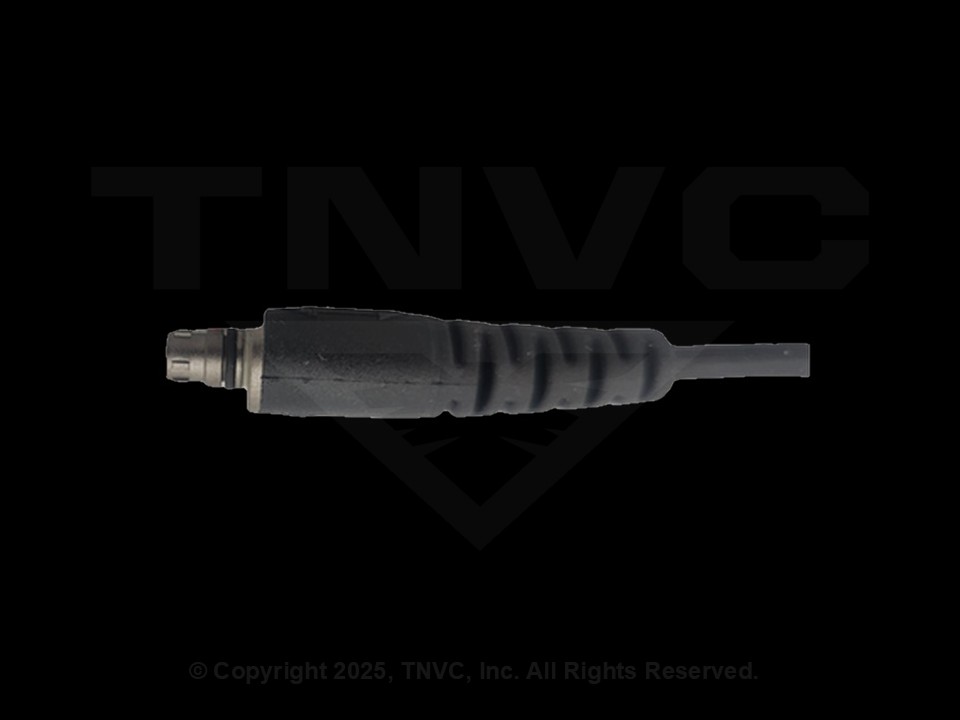

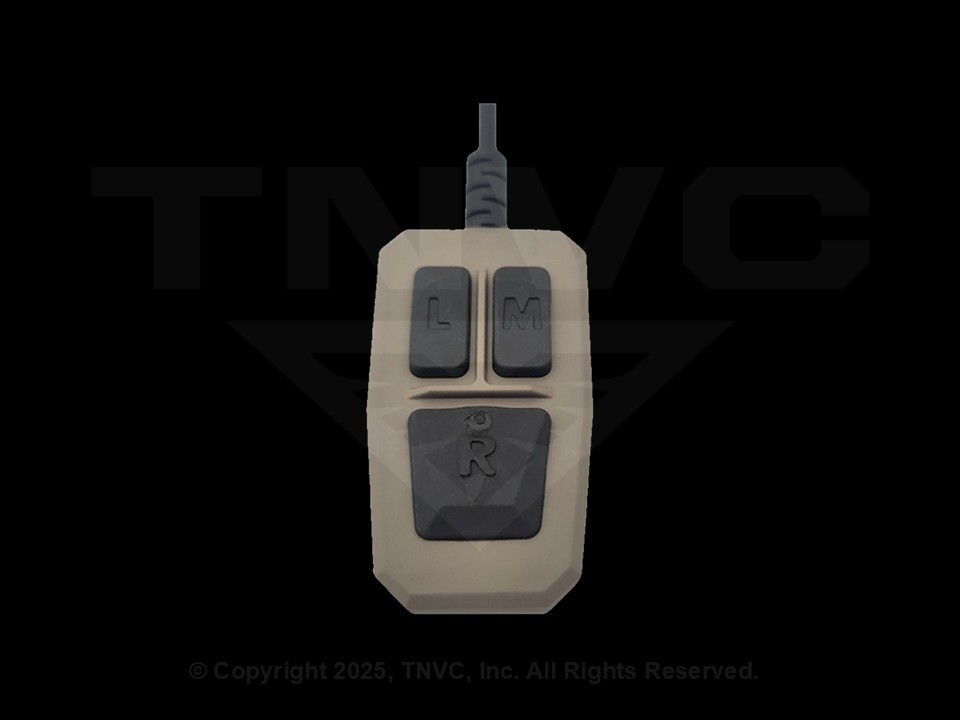

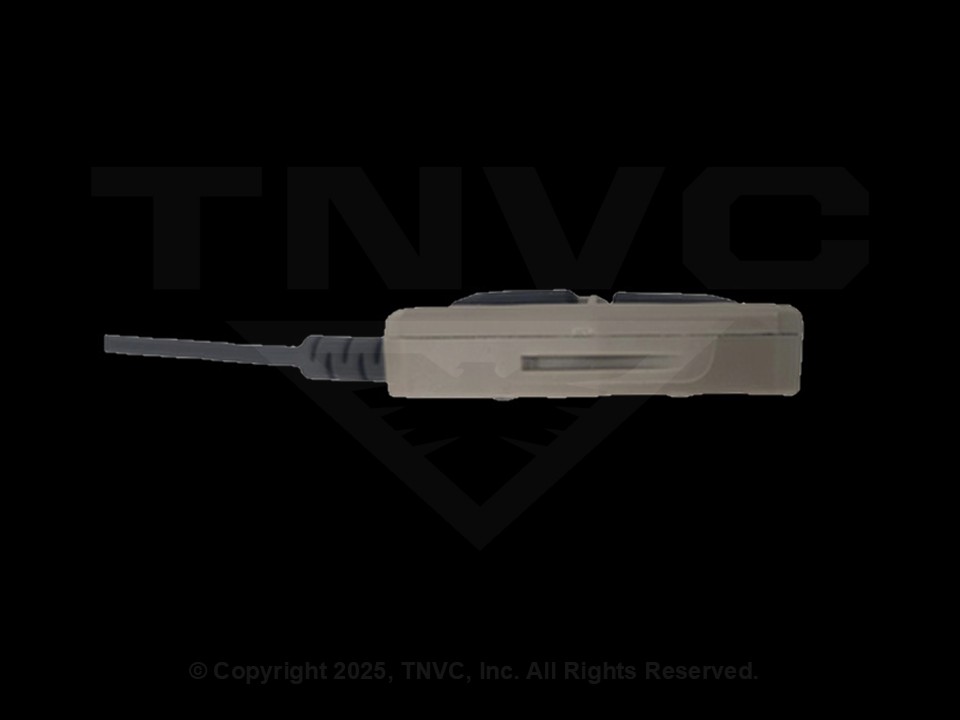

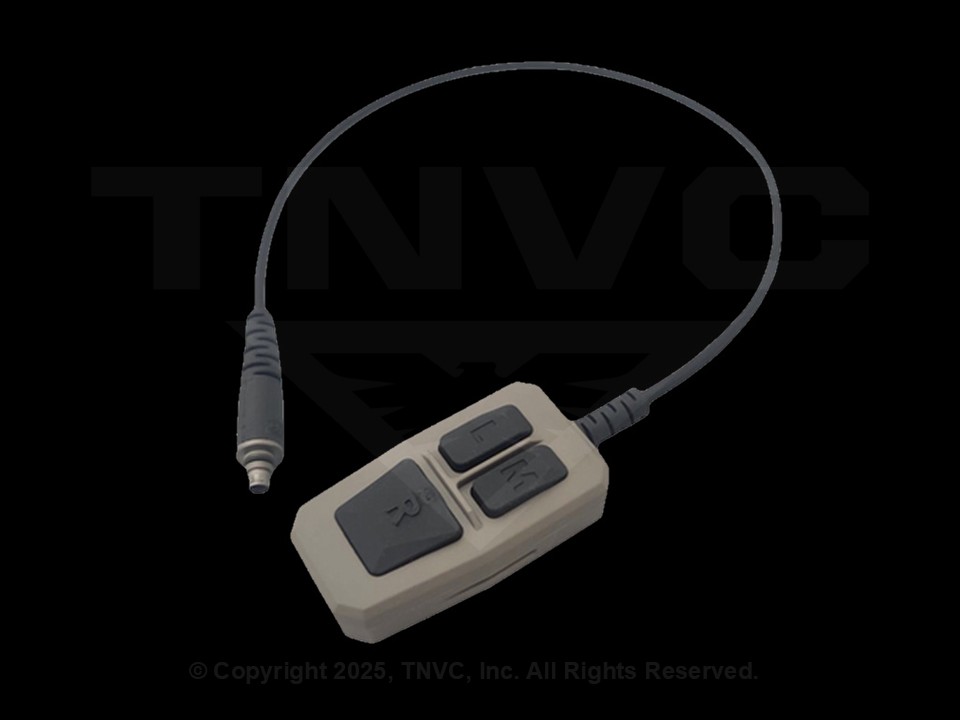

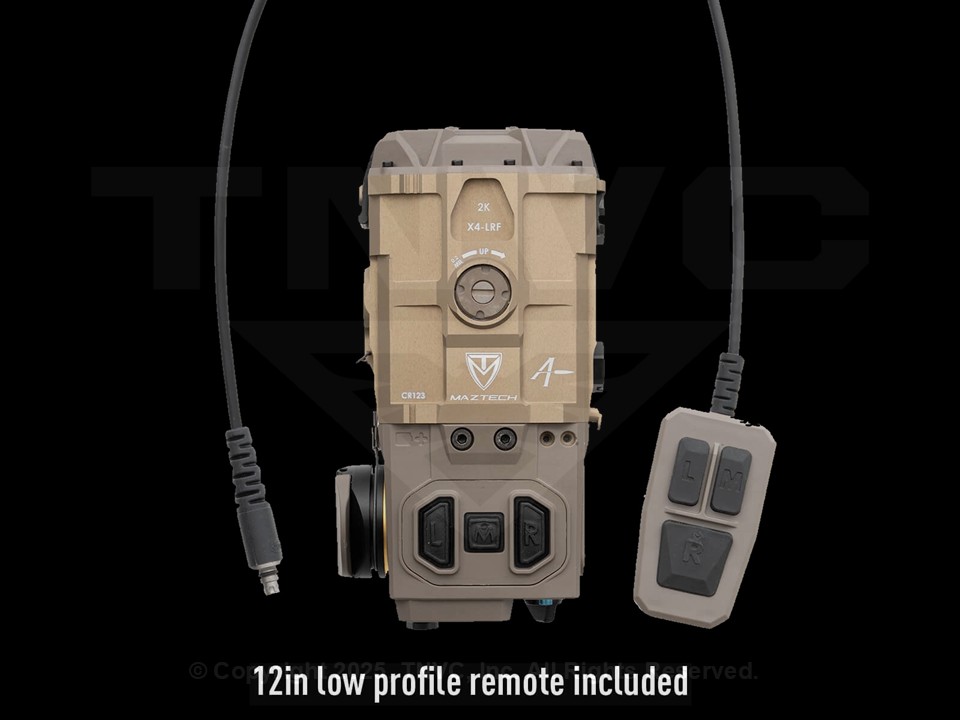

A 12 inch X4 Low Profile Remote (MZT007) is included for direct communication with the X4-LRF



*Note for Military and Law Enforcement:
Maztech offers variations of the X4-LRF which are specific for military and law enforcement agencies. These products contain high power, military-grade aiming lasers that are FDA-restricted to military and law enforcement use.
