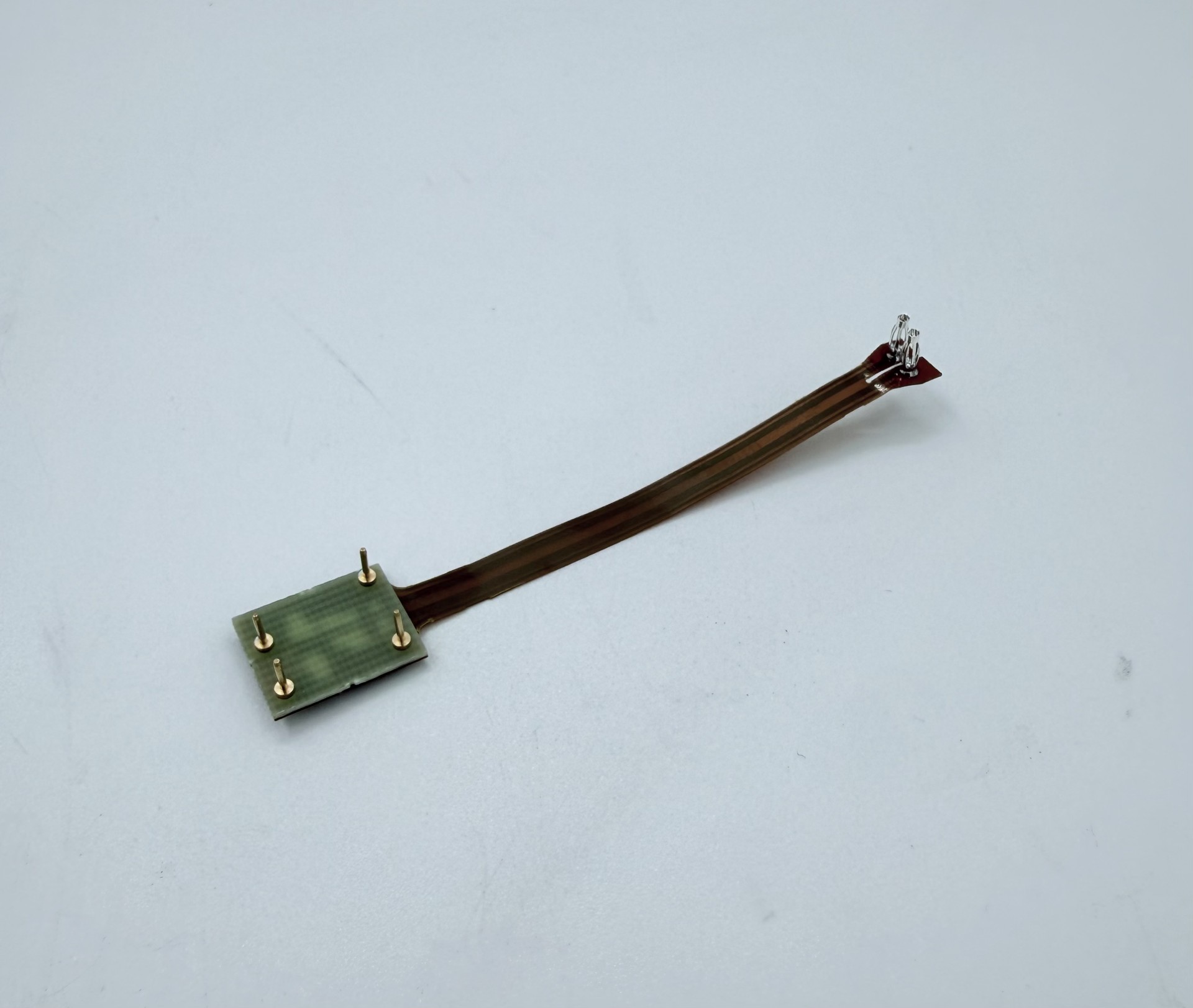

Replacement 4 Pin EGAC Pigtail for L3Harris and Elbit America Image Intensifiers

These are brand new factory 4-pin EGAC pigtails that were removed from MX-11769 format image intensifiers. Sold individually (one per tube). The 4-pin EGAC pigtail used with the MX-11769 image intensifier allow for manual gain control and are most commonly used in the PVS-14 and any other manual gain control housing that requires the use of the MX-11769.

They are manufacturer specific and compatible with newer production image intensifiers with convertible power supplies.

L3Harris EGAC pigtails feature plugs that allow them to be easily removed/installed and are only compatible with newer production tubes that have access ports.

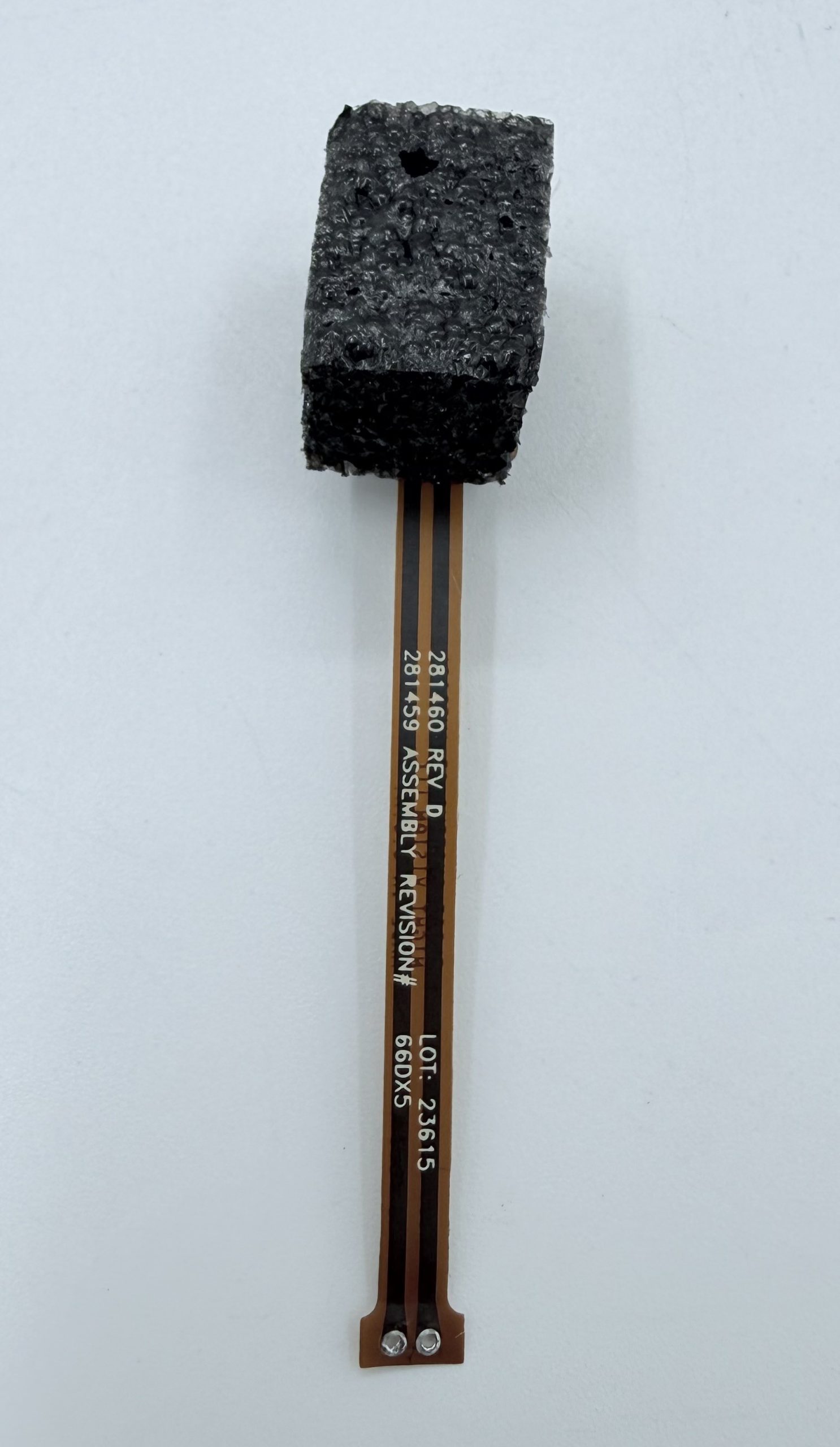

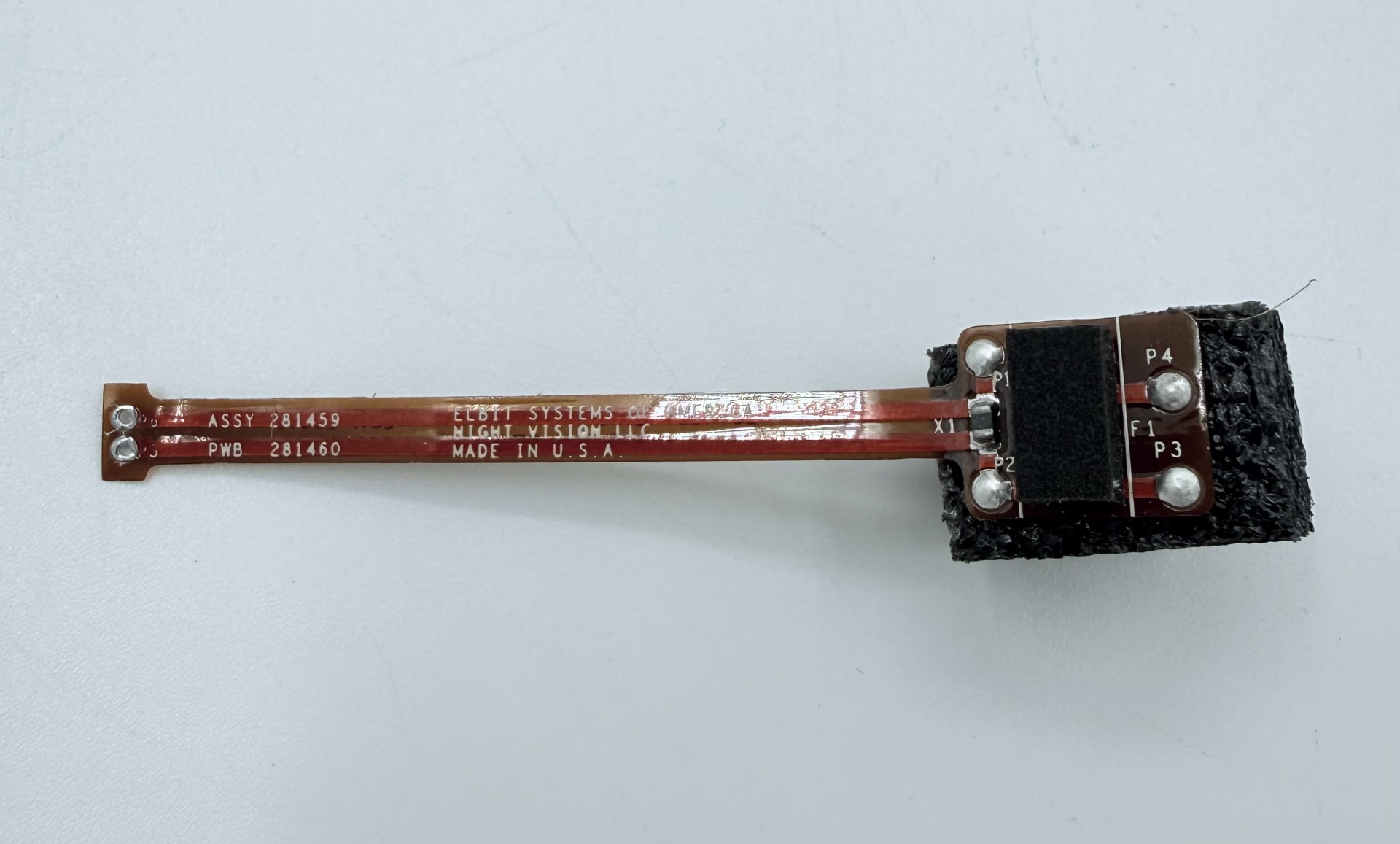

Elbit America EGAC pigtails require soldering in order to be removed/installed.

Please contact us if you prefer TNVC to perform the installation.
