What is TNVC SuperGain?

SuperGain is the latest image intensifier tube technology from L3Harris and introduced to the commercial market by TNVC, and is one of the most significant evolutions in Generation 3 night vision systems and performance since the introduction of Unfilmed technology.

Over the years, TNVC has been fully committed to making the very best and most advanced, High-Performance MIL-SPEC, duty-ready night vision, thermal, and visual augmentation systems technology available to ALL customers.

Shop Supergain Now

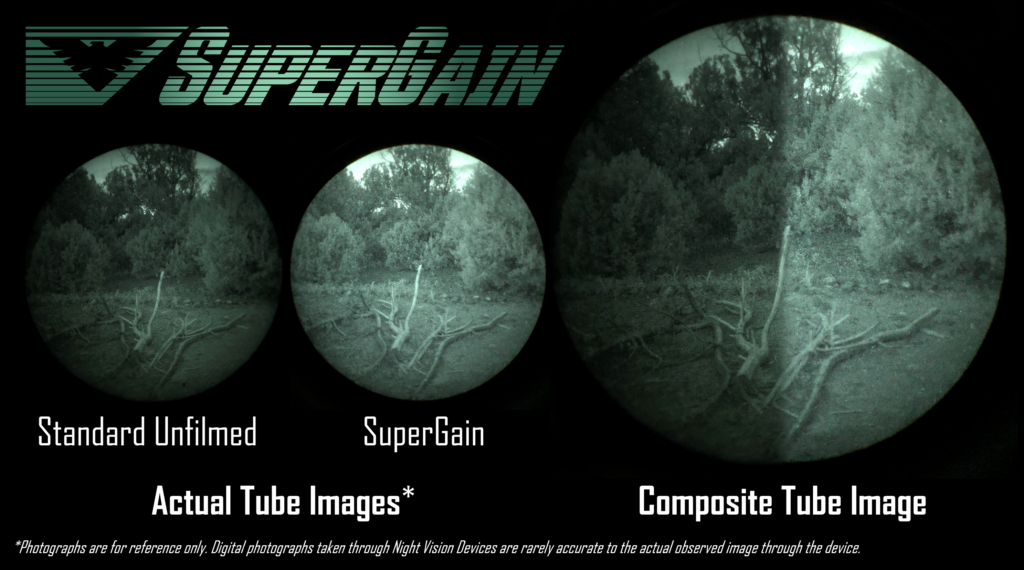

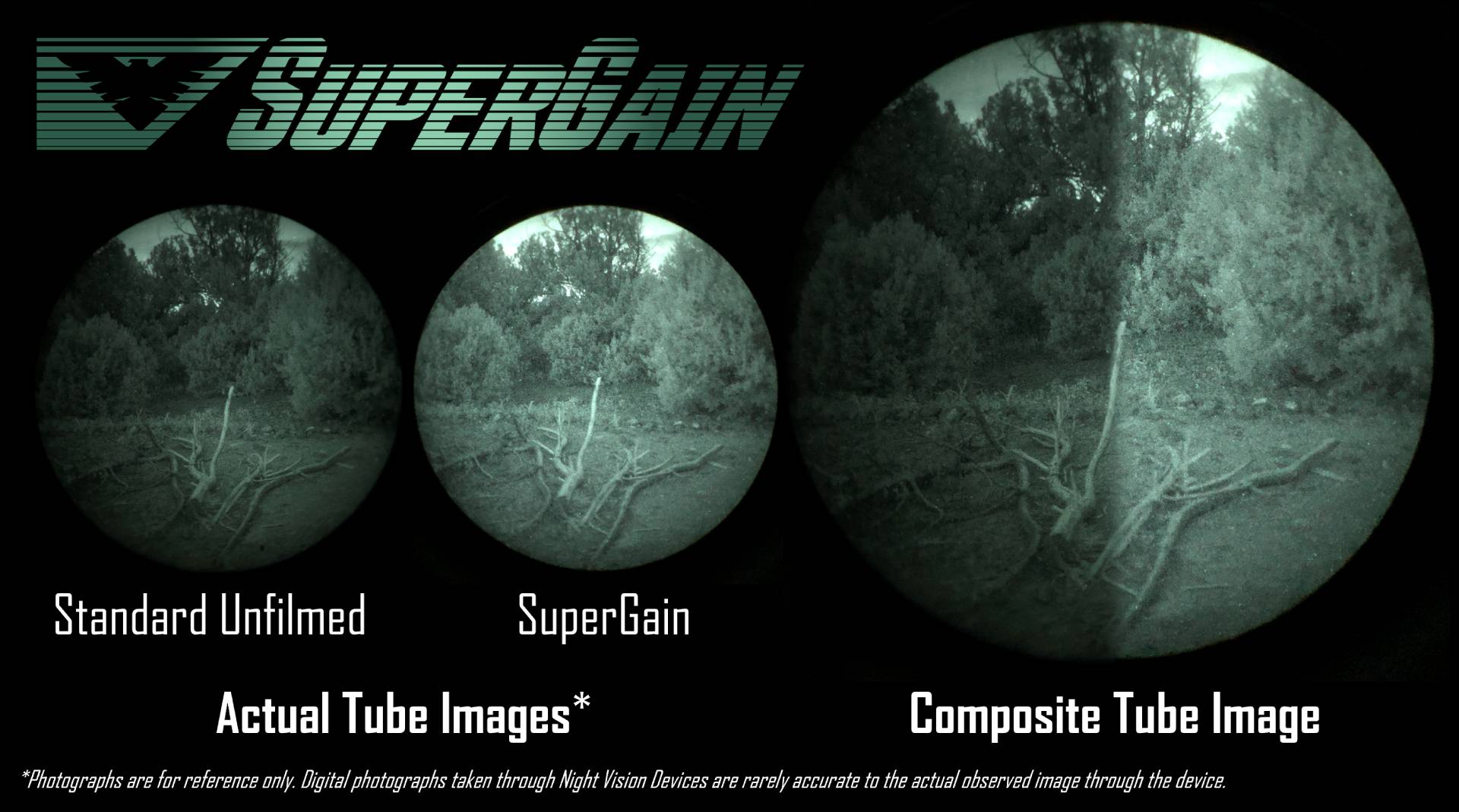

Manufactured by L3Harris and distributed by TNVC, SuperGain Unfilmed White Phosphor image intensifier tubes increase the Luminance Gain (Gain) specification for image intensifier tubes from the standard 40,000-80,000 fL/fc to between 100,000-120,000 fL/fc greatly increasing the image intensifier’s ability to amplify and collect light, resulting in a noticeably brighter image with increased low light performance and extending operational envelope and ability to see into dark areas.

DID YOU KNOW?

Luminance Gain is the measure of how well an image intensifier can amplify light, and one of the most critically important factors of image intensifier performance.

The term the “Failure” implied in MTTF (“Mean Time To Failure”) of an image intensifier is broadly understood to represent a roughly 50% loss of Gain.

TUBE GAIN AND PERFORMANCE

Many consumers, both government and commercial, have been focused on Figure of Merit, or “FOM” (Signal to Noise Ratio multiplied by Center Resolution) as a metric for image intensifier performance and image quality, with manufacturers pushing the envelope of performance through improved methods and processes, Luminance Gain is typically set by the manufacturer.

Since Gain has typically been set by the manufacturers and is relatively stable, its importance to image intensifier performance has often been lesser discussed when talking about image intensifier performance

Gain and FOM are not independent when discussing the overall performance and quality of an Image Intensifier Tube–increasing the Gain on lower performance tubes can lead to increased noise in the image, which is why it has previously been limited.

It is only due to recent advancements in Image Intensifier performance and consistency that the military specifications for Gain have been able to be increased.

SUPERGAIN FEATURES

Experience the latest evolution of Image Intensified Night Vision devices from L3Harris, being used in the toughest conditions for the most critical missions by U.S. DoD and Tier 1 Special Operations worldwide.
